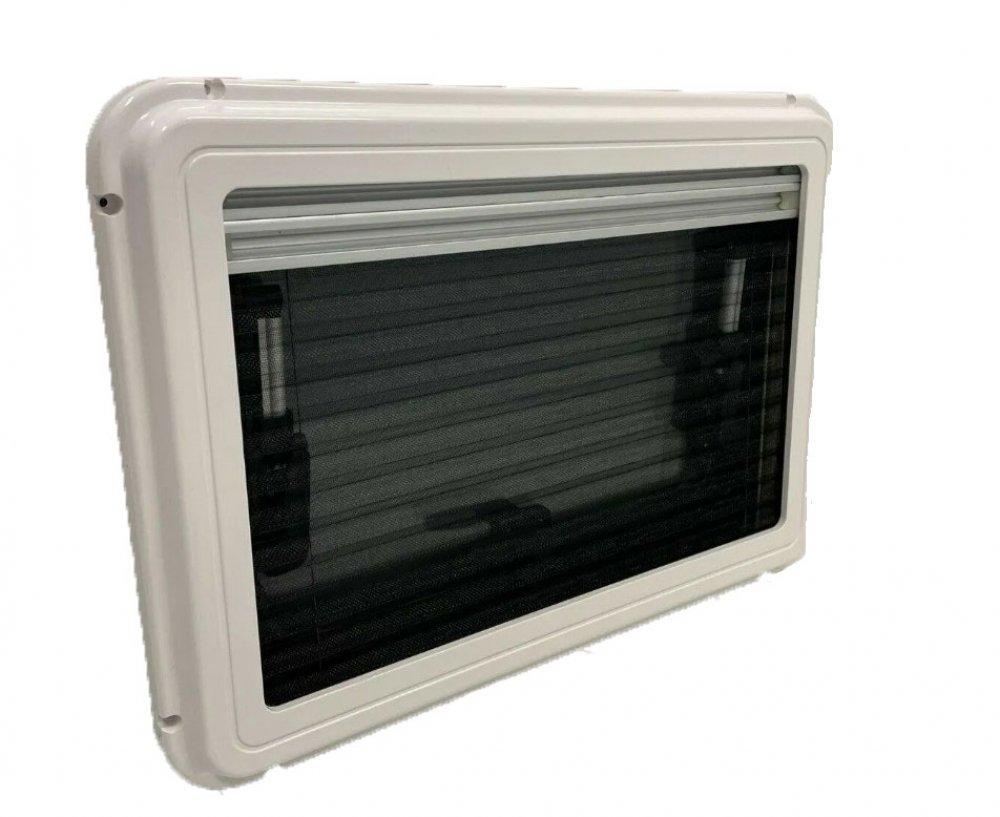

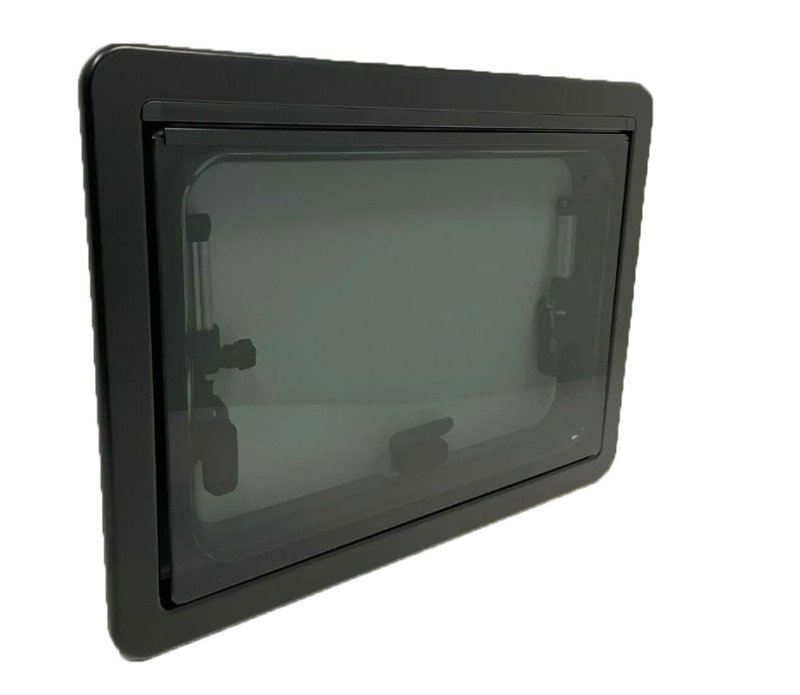

PLS SpeedStyle Hinged Window 500 x 450. This SpeedStyle top hung, double glazed acrylic hinged
window is complete with sturdy window stays, lever locks and a full flynet and blind. Made for
quick and easy installation, this cost effective window will make replacing any existing like for
like models a doddle. With its sleek design and high quality finish, we will have your caravan,
motorhome or campervan looking amazing in no time. Overall Height: 479 mm Overall Width: 529 mm.
Cut Out Width: 500 mm Cut Out Height: 450 mm Net weight: 4.2 kg Max Open Degree: 45. Fitting
Instructions: 1. Wall thickness must be between 25mm - 45mm. 2. After making cut out, apply
silicone or foam around cut out to create a seal. 3. Fit bracket whilst lining up bracket holes
with window holes on exterior of cut out. DO NOT OVER TIGHTEN 4. Apply screws to blind frame and
cover screw holes. AGAIN, DO NOT OVER TIGHTEN 5. Test blind, flynet and window operation.
