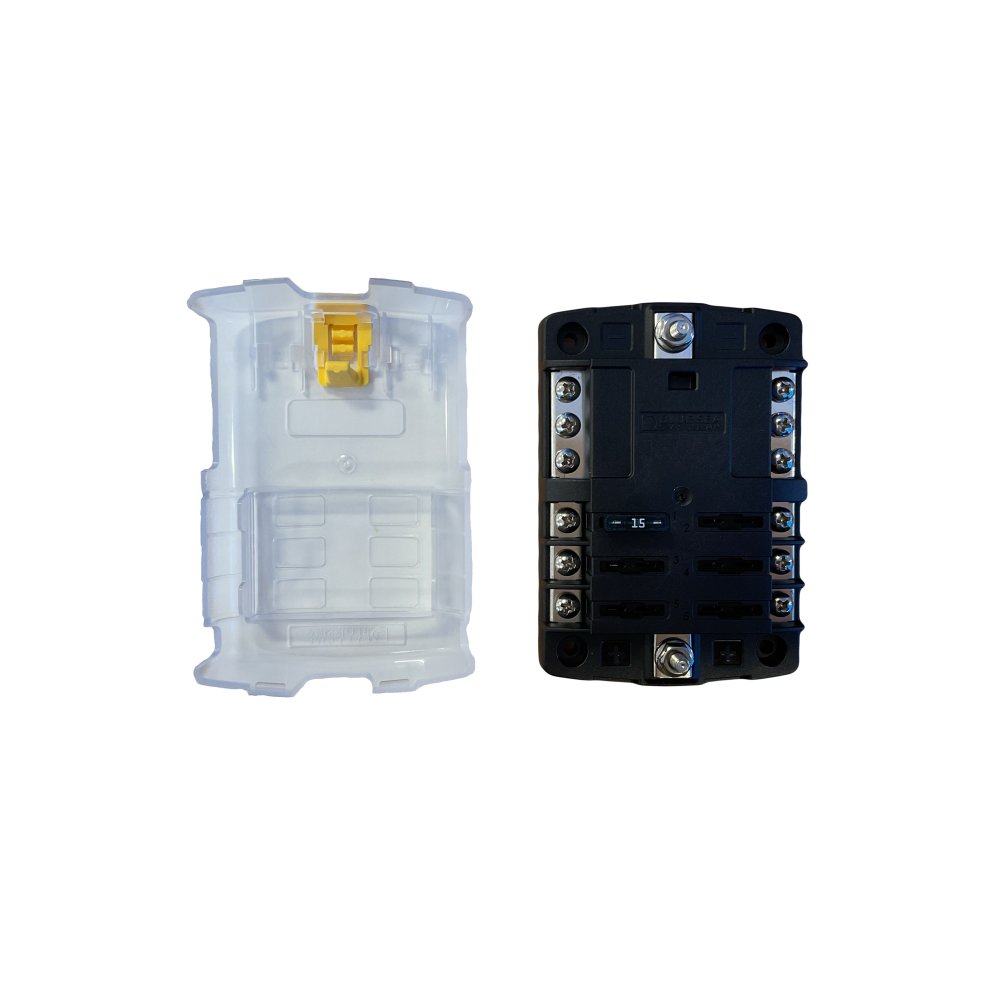

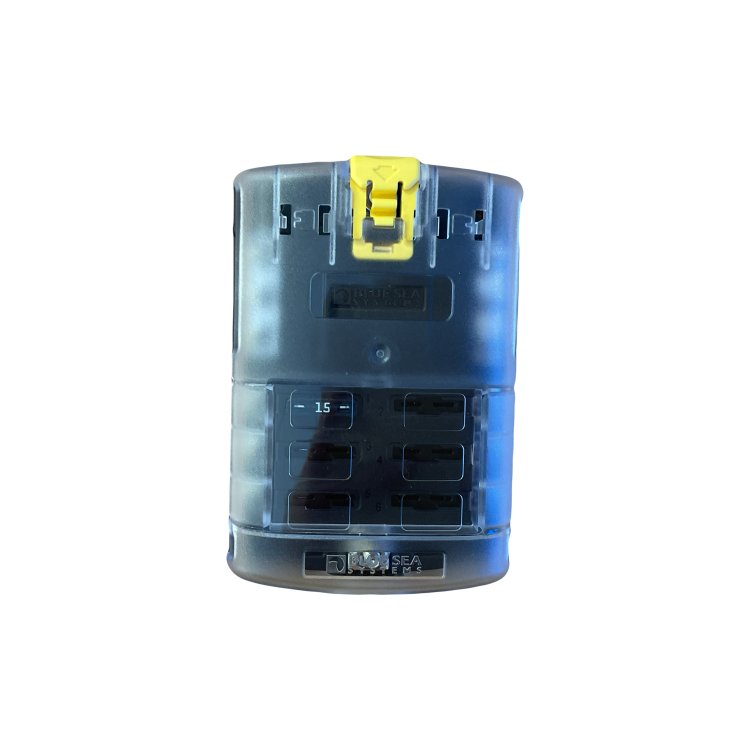

Marine ST Blade Fuse Block - 6 Circuits Neg Bus & Cover. Can be used for 24-hour circuits, clearinsulating cover with label recesses accepts Small Format Labels. The insulating cover satisfies
ABYC/USCG insulation requirements. Insulating cover provides storage for two spare fuses. Accepts
ring terminals. Easy to ope with a push button latch. Tin-plated copper buses and fuse clips.
Positive distribution bus with #10-32 stude, includes 20 write-on circuit labels. Fuses sold
separtely.

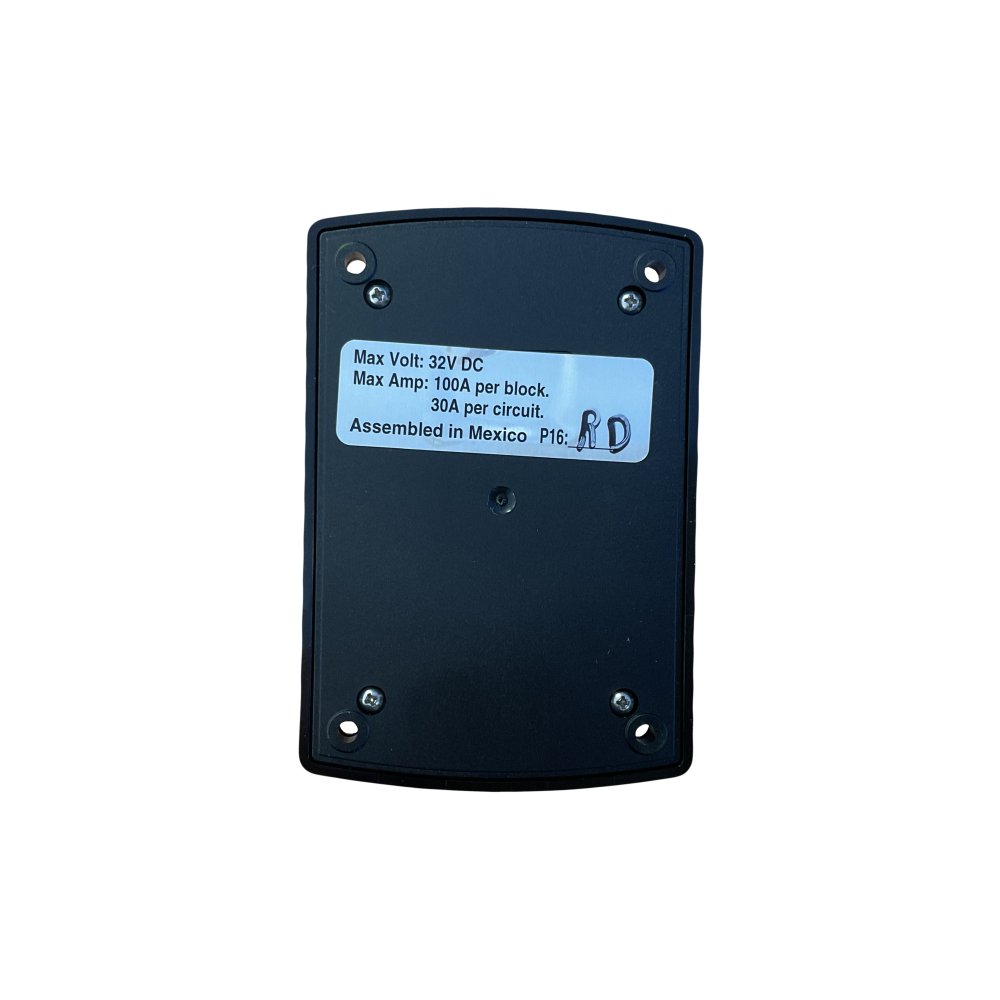

Voltage maximum operating - 32V DC.
Amperage maximum operating - 30A per circuit.
Amperage maximum operating - 100A per block.
Fuse type - ATO or ATC fuses.
Screw terminal #8-32 screws with captive lock washer.
Mounting - #8 screw (M4).
