ST Blade Battery Terminal Mount Fuse Block Kit

Click images to enlarge

Additional Images

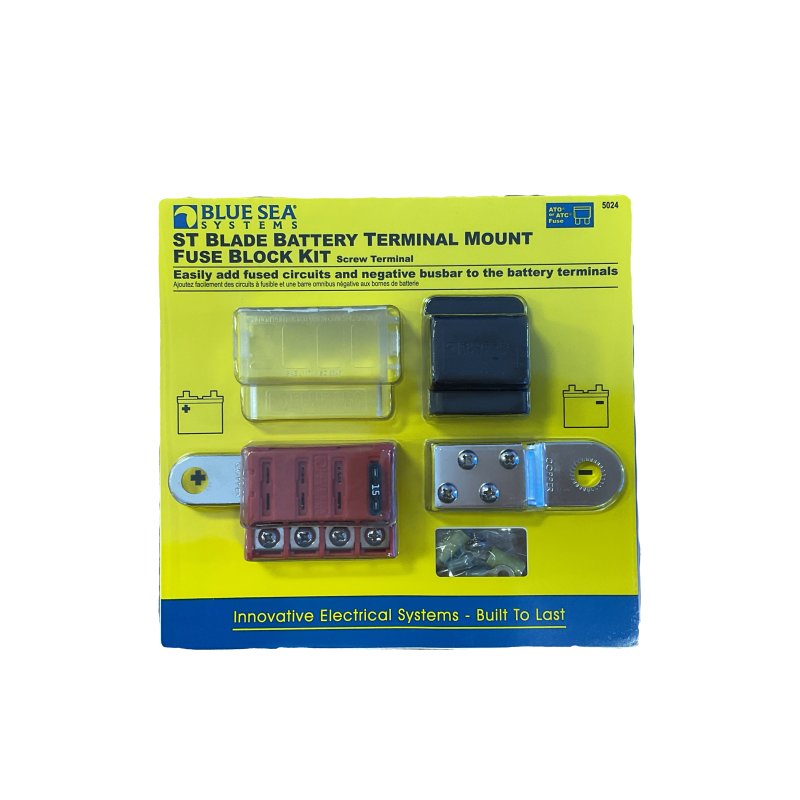

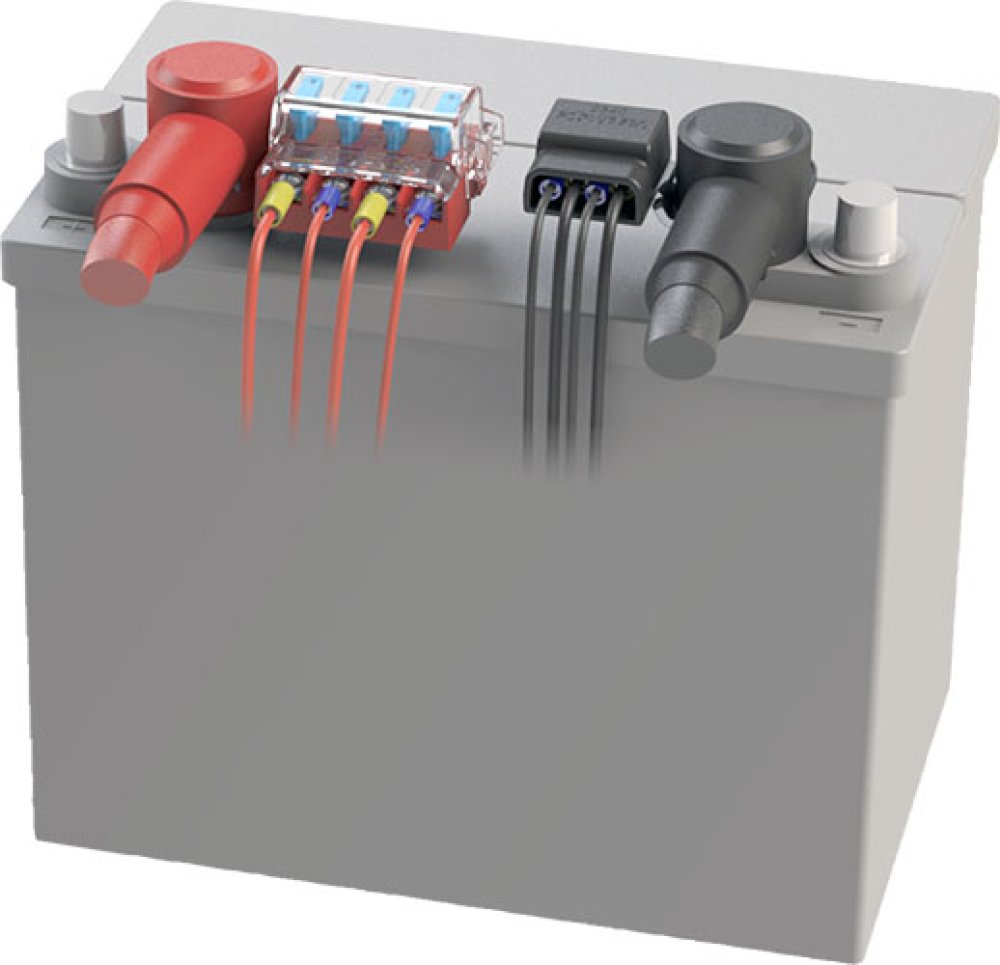

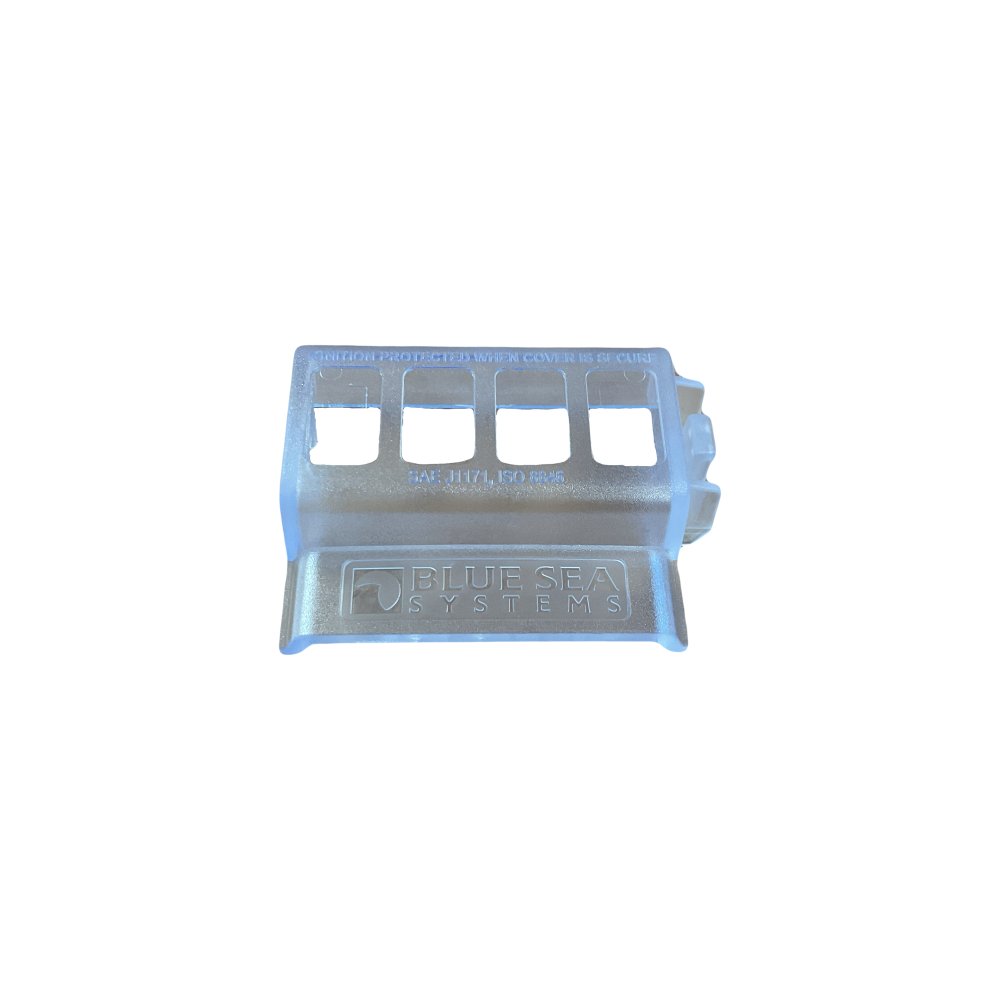

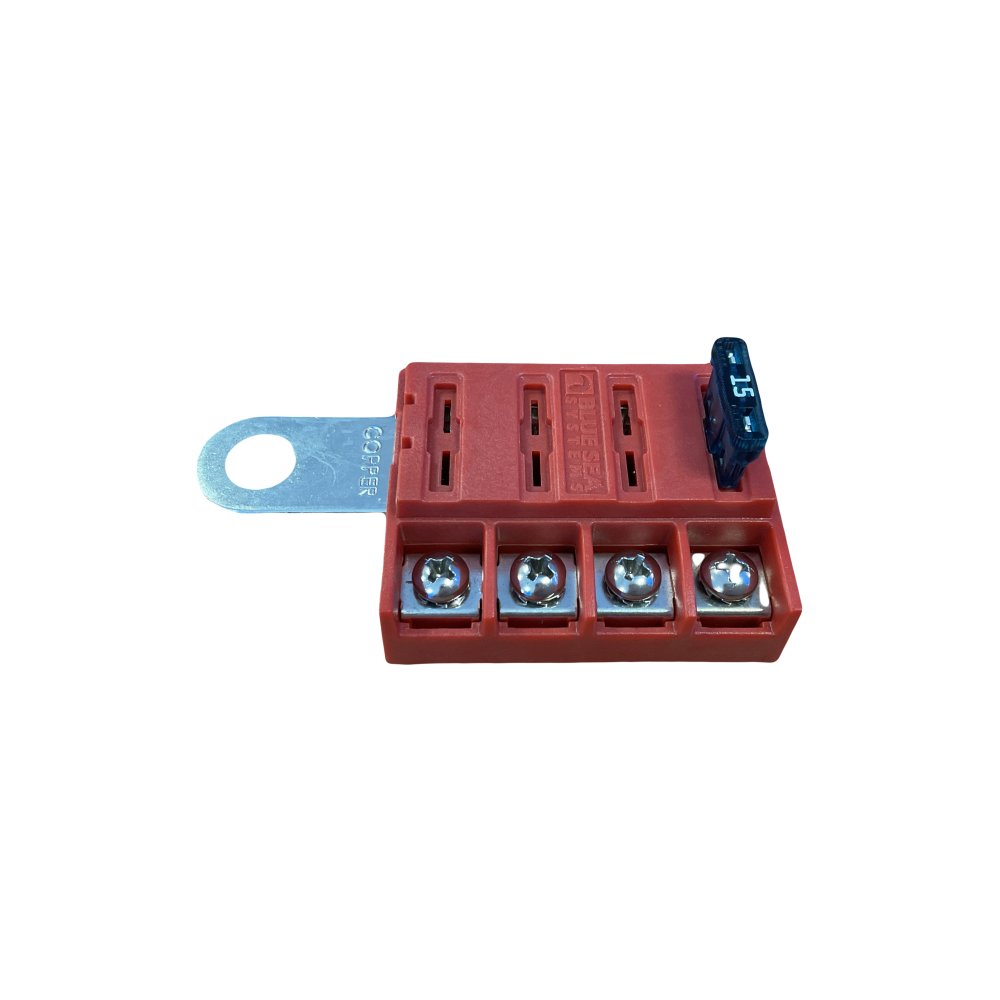

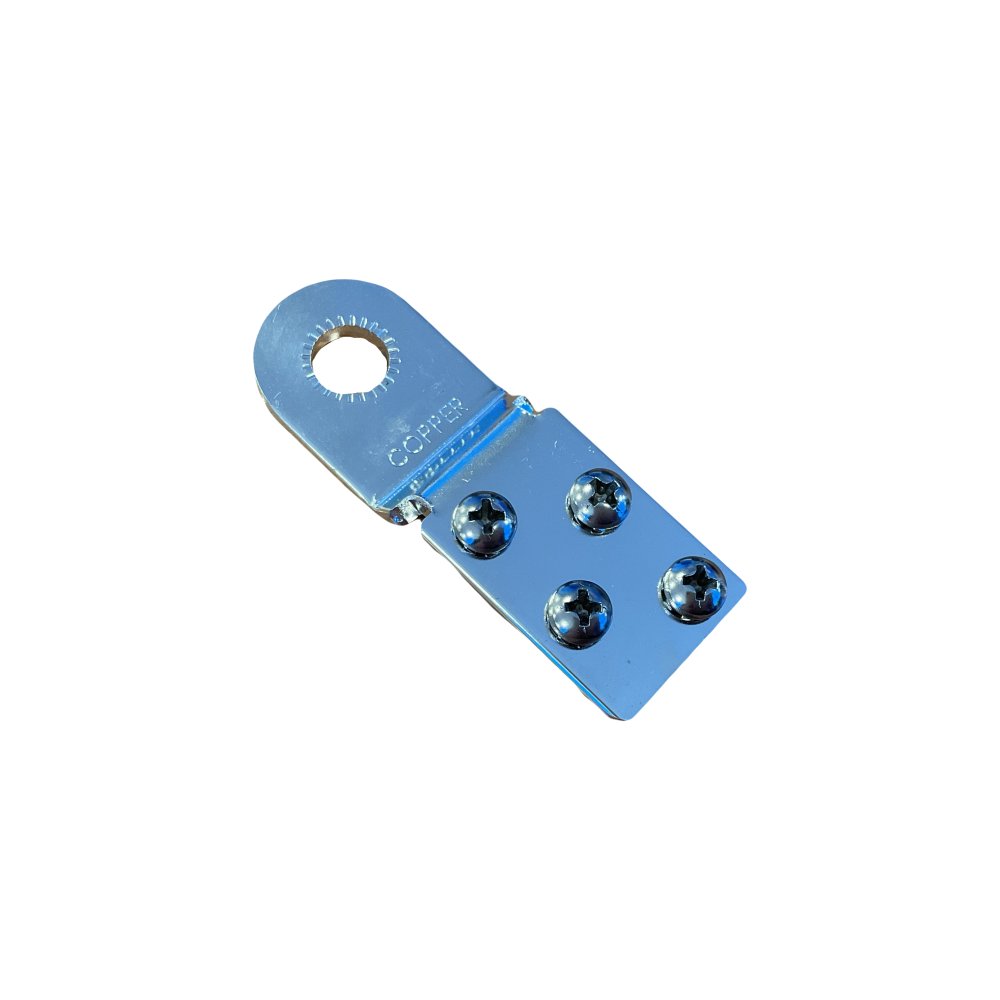

ST Blade Battery Terminal Mount Fuse Block Kit. Screw terminal. Easily add fused circuits and negative busbar to the barttery terminals. ignition protected when the cover is secure, includes a 4-circuit negative busbar, tin-plated pure electrical copper for maximum coductivity, insulating covers meet ABYC/USCG insulation requirements, screw terminals for securing wires, includes write-on circuit labels and four 16-14 AWG Nylon insulated ring terminals. Voltage maximum operating - 32V DC. Amperage Maximum Operating - 30A per circuit, 100A per block. Fuse typer - ATO or ATC fuses. Bus material - Tin-plated copper C11000. Mounting Hole - Clearance for 3/8" (M10) stud. Screw terminal - #8-32 screws with captive star lock washer.

Details:
Item code: BS0050
Availability: IN STOCK
